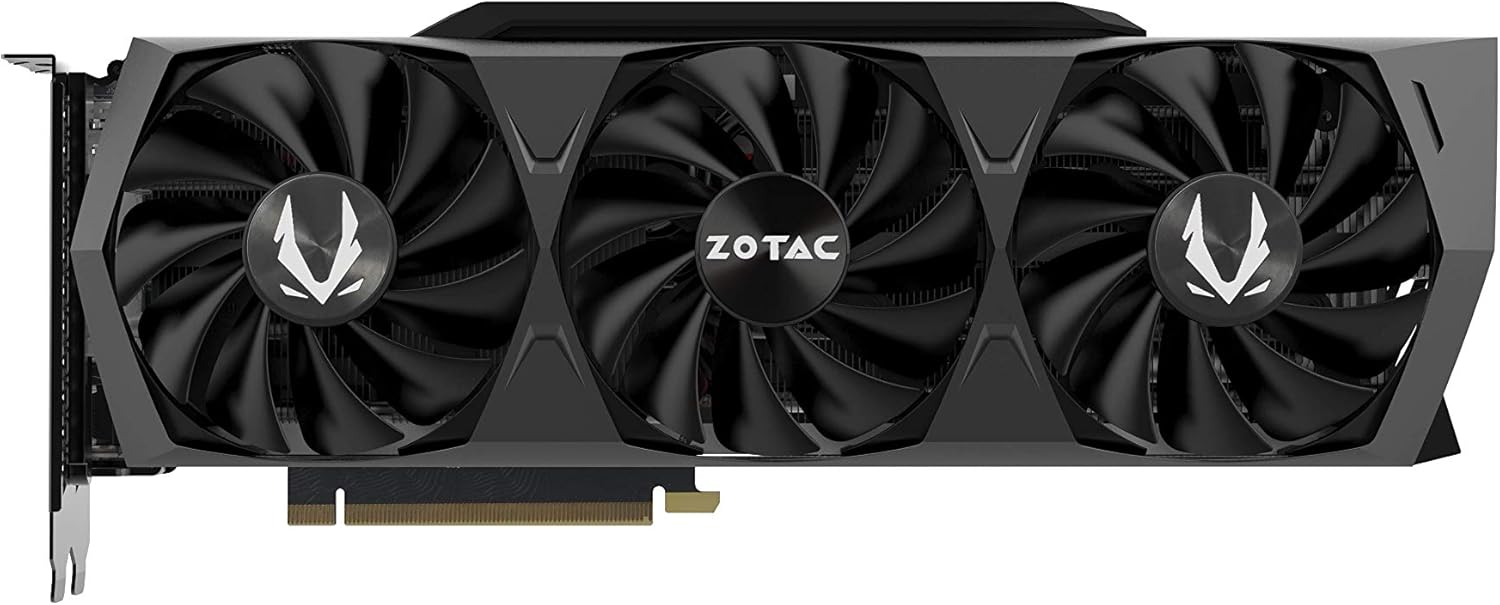

ZOTAC Gaming GeForce RTX 3080 Trinity OC 10GB GDDR6X 320-bit 19 Gbps PCIE 4.0 Gaming Graphics Card, IceStorm 2.0 Advanced Cooling, Spectra 2.0 RGB Lighting, ZT-A30800J-10P
Product details
| Management number | 212247575 | Release Date | 2026/04/06 | List Price | $270.51 | Model Number | 212247575 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Get Amplified with the ZOTAC GAMING GeForce RTX 30 Series based on the NVIDIA Ampere architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast GDDR6X memory, the ZOTAC GAMING GeForce RTX 3080 Trinity OC gives rise to amplified gaming with ultra graphics fidelity.FEATURES• GDDR6X Graphics Memory• 2nd Gen Ray Tracing Cores• 3rd Gen Tensor Cores• VR Ready• SPECTRA 2.0 RGB Lighting• IceStorm 2.0 Advanced Cooling• Active Fan Control with FREEZE Fan Stop• Metal Frontplate and RGB LED Backplate• NVIDIA DLSS• NVIDIA G-SYNC compatibleSPECIFICATIONS• NVIDIA GeForce RTX 3080 GPU• 8704 CUDA cores• 10GB GDDR6X memory• 320-bit memory bus• Engine boost clock: 1725 MHz• Memory clock: 19.0 Gbps• PCI Express 4.0 16xCONNECTIONS• 3 x DisplayPort 1.4a (up to 7680x4320@60Hz)• 1 x HDMI 2.1 (up to 7680x4320@60Hz)• HDCP 2.3 support• Quad simultaneous display capableSOFTWARE COMPATIBILITY• Game Ready Drivers and NVIDIA Studio Drivers• Microsoft DirectX 12 Ultimate, Vulkan RT API• OpenGL 4.6• Windows 10 64-bit (build 2004 or later)POWER REQUIREMENTS• 750-watt power supply recommended• 350-watt max power consumption• 2 x 8-pin power connectorINSIDE THE BOX• ZOTAC GAMING GeForce RTX 3080 Trinity OC• 2 x Dual 6-pin to 8-pin cable• User ManualDIMENSIONS• Length: 317.8mm (12.5in)• Height: 120.7mm (4.8in)• Width: 2.5 slot (58mm) (2.3in)Box• Height: 424mm (16.69in)• Width: 292mm (11.5in)• Depth: 99mm (3.9in). • For customer service, technical support, or general inquiries, please visit our dedicated support page at www.zotac.com/support
- NVIDIA Ampere architecture, 2nd Gen Ray Tracing Cores, 3rd Gen Tensor Cores
- 10GB 320-bit GDDR6X, 19 Gbps, PCIE 4.0
- SPECTRA 2.0 RGB Lighting, IceStorm 2.0 Advanced Cooling, Freeze Fan Stop, Active Fan Control, Metal Frontplate, Lighted Backplate
- 8K Ready, 4 Display Ready, HDCP 2.3, VR Ready
- 3 x DisplayPort 1.4a, 1 x HDMI 2.1, DirectX 12 Ultimate, Vulkan RT API, OpenGL 4.6
- Boost Clock 1725 MHz
| UPC | 810012081894 |
|---|---|
| Brand | ZOTAC |
| Model Name | RTX 3080 |
| Manufacturer | ZOTAC |
| BuiltIn Media | ZOTAC GAMING GeForce RTX 3080 Trinity OC graphics card, 2x Dual 6-pin to 8-pin adapter, User Manual |
| Number of Fans | 3 |
| Video Processor | NVIDIA |
| Antenna Location | Gaming |
| Graphics Card Ram | 10 GB |
| Graphics Ram Type | GDDR6 |
| Compatible Devices | Desktop |
| Memory Clock Speed | 19 GHz |
| Graphics Coprocessor | NVIDIA GeForce RTX 3080 |
| Graphics Description | ZOTAC GAMING GeForce RTX 3080 Trinity OC |
| Warranty Description | 2 year manufacturer |
| Item Dimensions L x W | 12.5"L x 4.8"W |
| Video Output Interface | DisplayPort |
| Graphics Card Interface | PCI-Express x16 |
| Display Resolution Maximum | 7680x4320 |
