Air-Operated Heavy Duty Double Diaphragm Transfer Pump, QBK-15 Pneumatic Membrane Pump, 1/2" Inlet & Outlet, 12 GPM, Max 115 PSI, 1/4" Air Inlet for Diesel, Grease, Kerosene & Oil

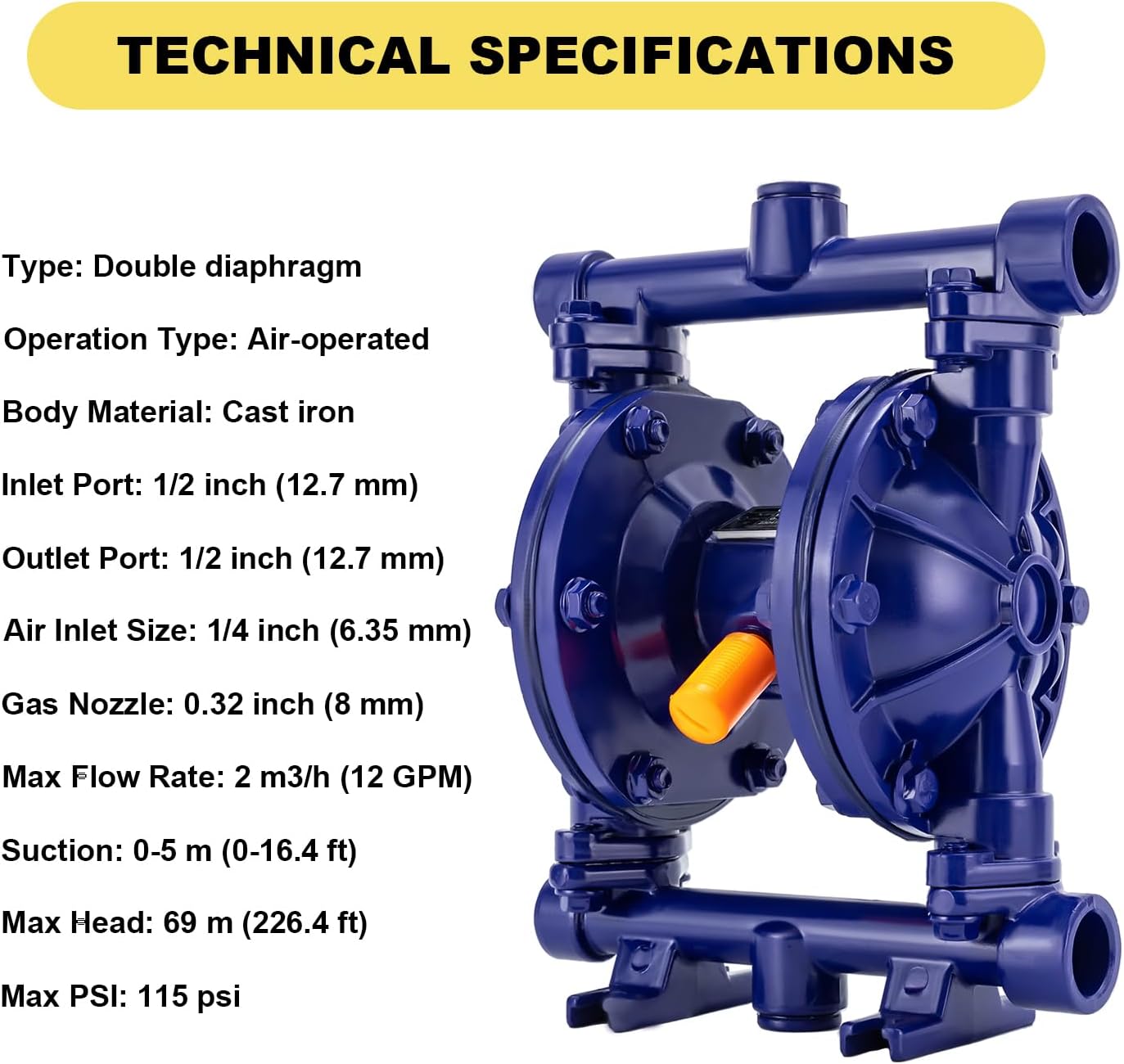

Not suitable for acid, alkali and other corrosive liquids.SpecificationsColor: BlueProduct: Diaphragm pumpType: Double diaphragmOperation Type: Air-operatedModel: QBK-15Body Material: Cast ironInlet Port: 1/2 inch (12.7 mm)Outlet Port: 1/2 inch (12.7 mm)Air Inlet Size: 1/4 inch (6.35 mm)Gas Nozzle: 0.32 inch (8 mm)Max Flow Rate: 2 m3/h (12 GPM)Suction: 0-5 m (0-16.4 ft)Max Head: 69 m (226.4 ft)Max PSI: 115 psiPackage Size: 30 x 28 x 20 cm (11.81 x 11.02 x 7.87 inch)Gross Weight: 6.5 kg (14.33 lbs)ApplicationPerfect for use with water. Ideal for use with low viscosity petroleum fluids including diesel, kerosene, motor oil and some waste oil. This powerful and efficient air operated diaphragm pump is perfect for all your needs in every industry!Warning!Working PrincipleIn the pump two symmetrical working chamber each equipped with a diaphragm, the center link will be integrated into one. Compressed air from the pump inlet into the valve, through the valve body to introduce compressed air into one of the chamber to promote movement of the diaphragm chamber, while the other chamber gas emissions. Once the end of the stroke is reached, the gas distribution mechanism automatically introduces compressed air into the other working chamber to push the diaphragm in the opposite direction so that the two diaphragms move back and forth in unison.FeatureAir-operated double diaphragm pumpWith 1/2 inch inlet and outlet1/4 Inch air inletWith 0.32 inch gas nozzleGood abrasion resistance and heat resistanceServiceability and environmentally soundPerfect for use with waterIdeal for use with low viscosity petroleum fluidsWidely used in various industriesPackage Content1 x Air-Operated Double Diaphragm Pump QBK-151 x Product Manual

• ✅ [ Function ] Environmentally Sound: Bolted construction for leak-free fluid handling. Efficiency: Motor design delivers optimum air efficiency. Reliability: "Unbalanced" air valve ensures no-stall operation.
• ✅ [ Solid Construction ] Rugged construction - resists corrosion for reliable performance and long life. Bolted construction is designed for leak-free fluid handling. Easy access to ball checks and fluid caps for maintenance and repairs.
• ✅ [ Application ] The diaphragm pump with convenient operating are widely used in various industries, such as petroleum, metallurgy, mining, coating material, printing, paper making, water treatment, automotive etc.

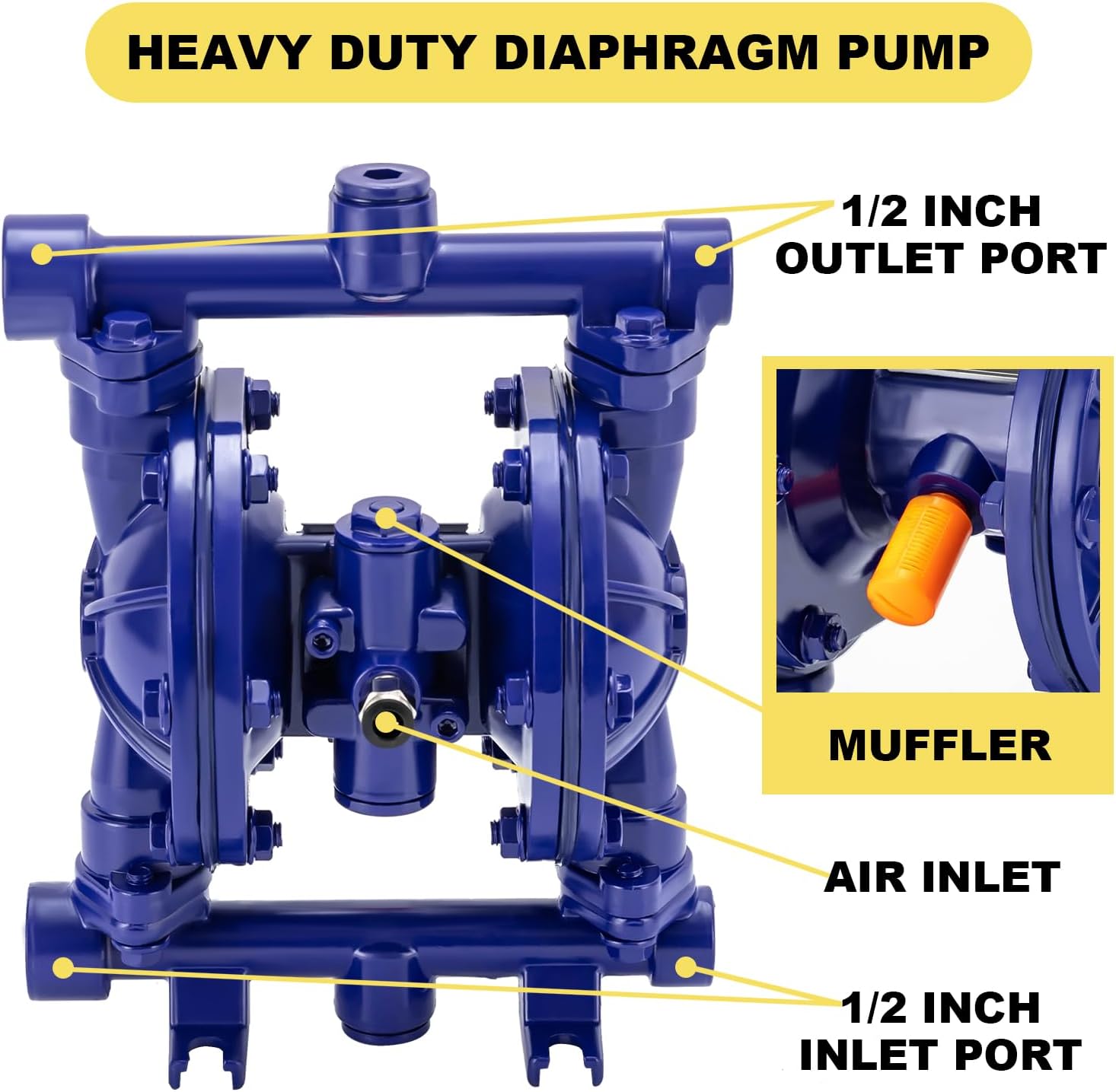

• ✅ [ Parameter ] Material: blue Cast Iron; Type: Double diaphragm; Operation Type : Air-operated; Inlet/Outlet Port Size/Standard：1/2"; Air Inlet Size [in]：1/4".
• ✅ [ Guarantee ] If you have any questions, you can contact our customer service, we will give you a satisfactory answer within 24 hours!
