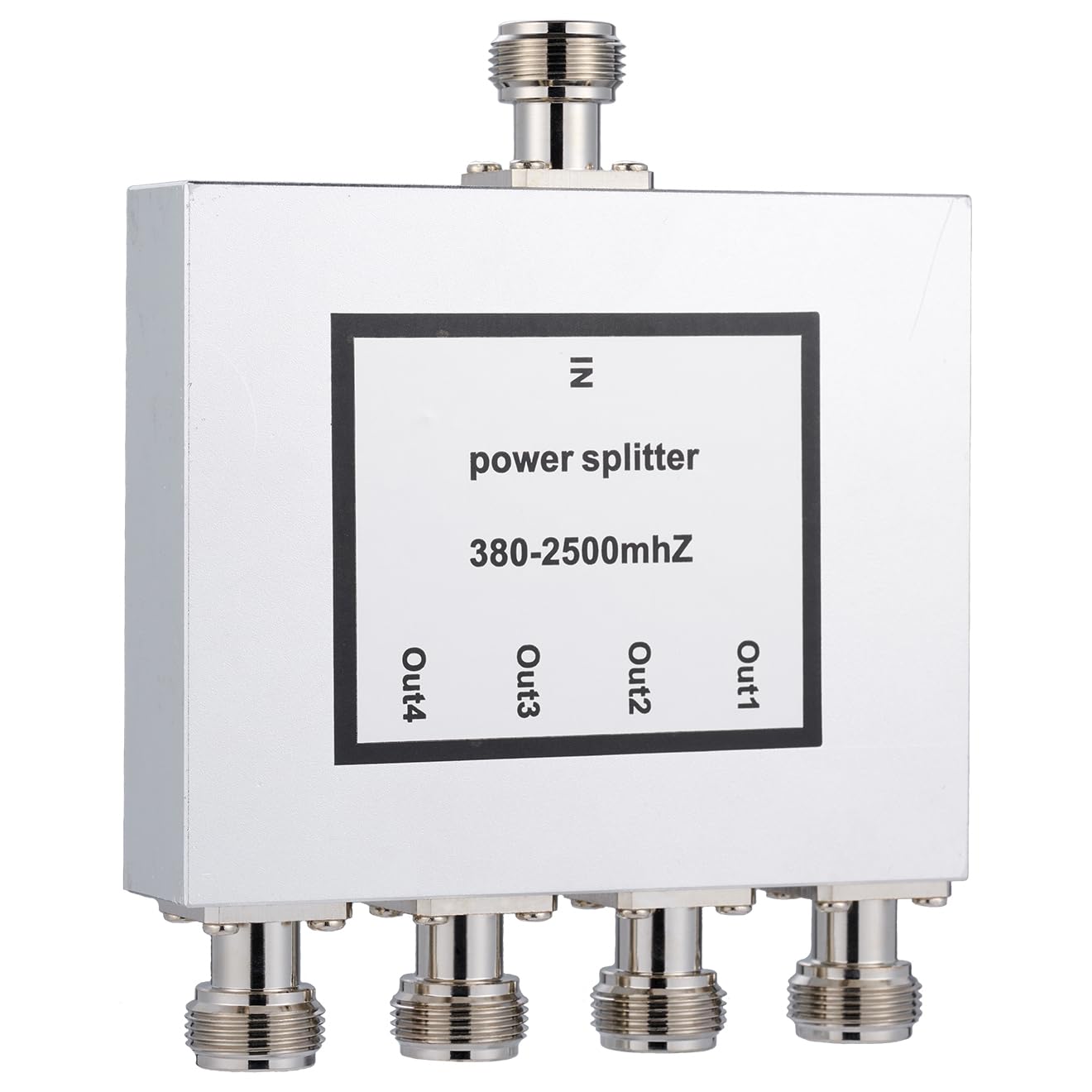

4 Way Signal Splitter with N Female Connector 50 Ohm Power Splitter 380MHz-2500MHz Cable Signal Splitter 1 Input 4 Output for Antenna Cable

Product Details：Product name: N female connector 4 way signal splitter Connector port: 1 input and 4 output Output port type: 4 way Connector type(Input): N female Connector type(Output 1): N femaleConnector type(Output 2): N femaleConnector type(Output 3): N femaleConnector type(Output 4): N femaleProduct material(Body): Aluminum alloy Connector material: Copper Frequency range (GHz): 380-2500Mhz Inputsertion loss (dB): 6.5-9.4Isolation (dB): ≤20 VSWR: ≥1.1; ≤2.53 Amplitude balance (dB): ≤0.3 Phase balance (°): ≤5 Impedance (Ω): 50 Power capacity (W): 50 Operating temperature (°C): -30～+70 Product dimensions (cm): 11.9*10*2cm Package: 1 x N female 4 way power splitter Weight: 357.3 g

• Product name: N female 4 way power splitter 1 input 4 out;
• Connector port: 1 input and 4 output; Output port type: 4 way; Connector type(Input): N female; Connector type(Output 1): N female; Connector type(Output 2): N female; Connector type(Output 3): N female; Connector type(Output 4): N female; Product material(Body): Aluminum alloy; Connector material: Copper;

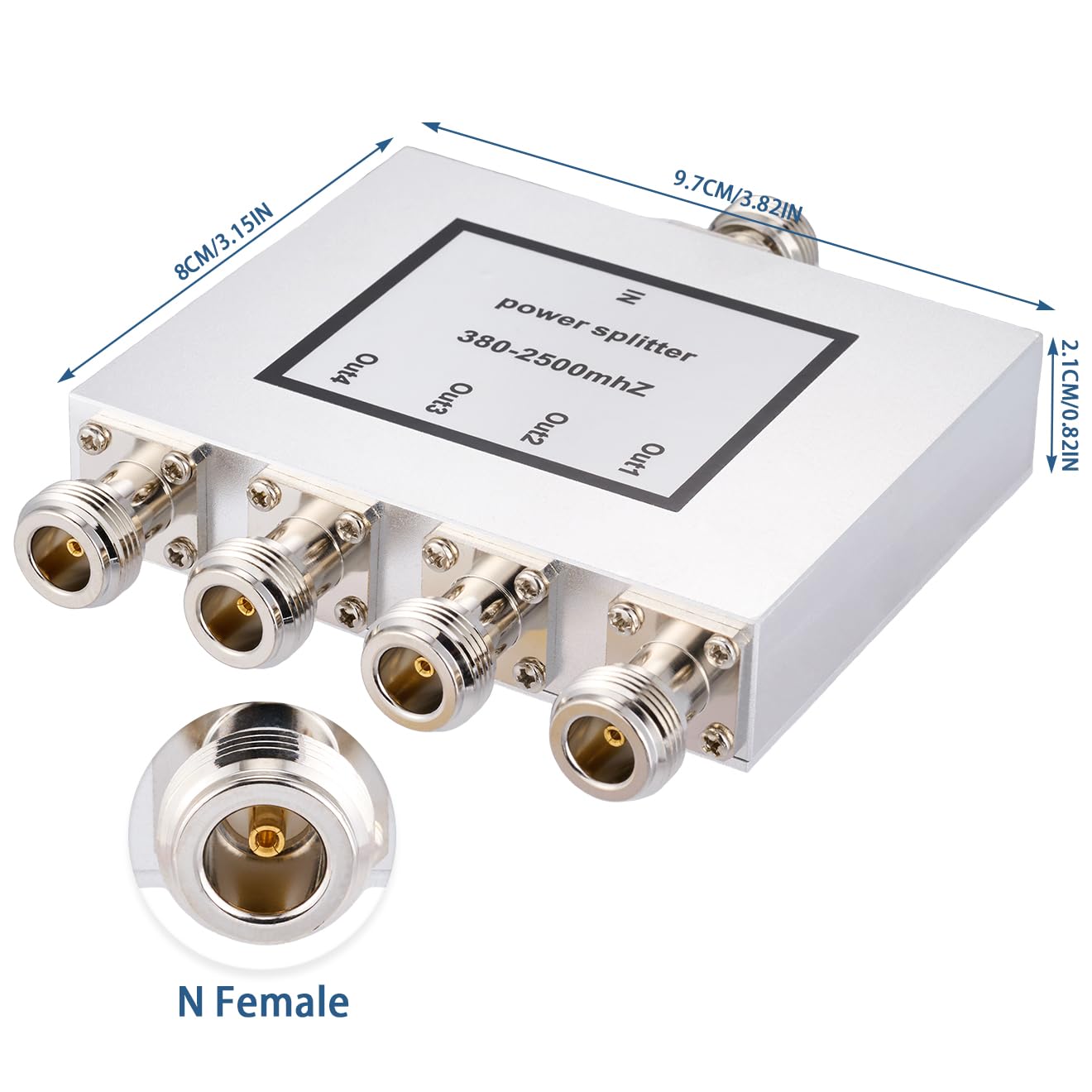

• Specification: Frequency range (GHz): 380-2500Mhz; Insertion loss (dB): 6.5-9.4; Isolation (dB): ≤20; VSWR: ≥1.1, ≤2.53; Amplitude balance (dB): ≤0.3; Phase balance (°): ≤5; Impedance (Ω): 50; Power capacity (W): 50; Operating temperature (°C): -30～+70; Product dimensions (cm): 11.9*10*2cm;
• Applicaion: Provides 4 amplified N female output ports for use with cable antenna satellite signal and so on;
• Package: 1 x N female 4 way signal splitter(Weight:357.3g).
