35mm 40mm Hinge Jig Door Cabinets Concealed Hinge Hole Template Jig ABS Drill Guide Locator Tools for Carpentry - (Color: F)
Product details
| Management number | 213604184 | Release Date | 2026/04/12 | List Price | $13.72 | Model Number | 213604184 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

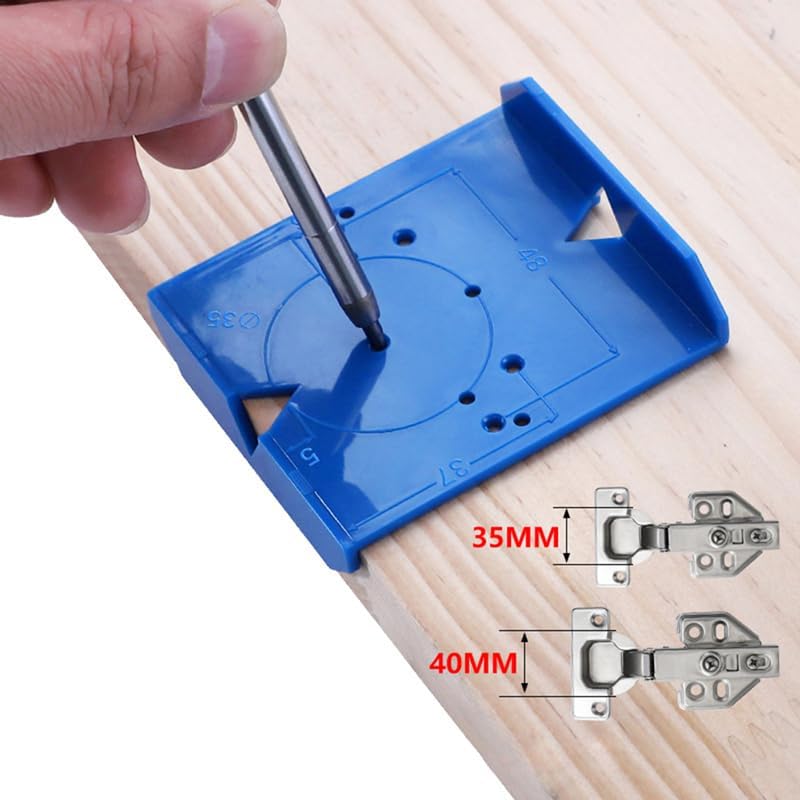

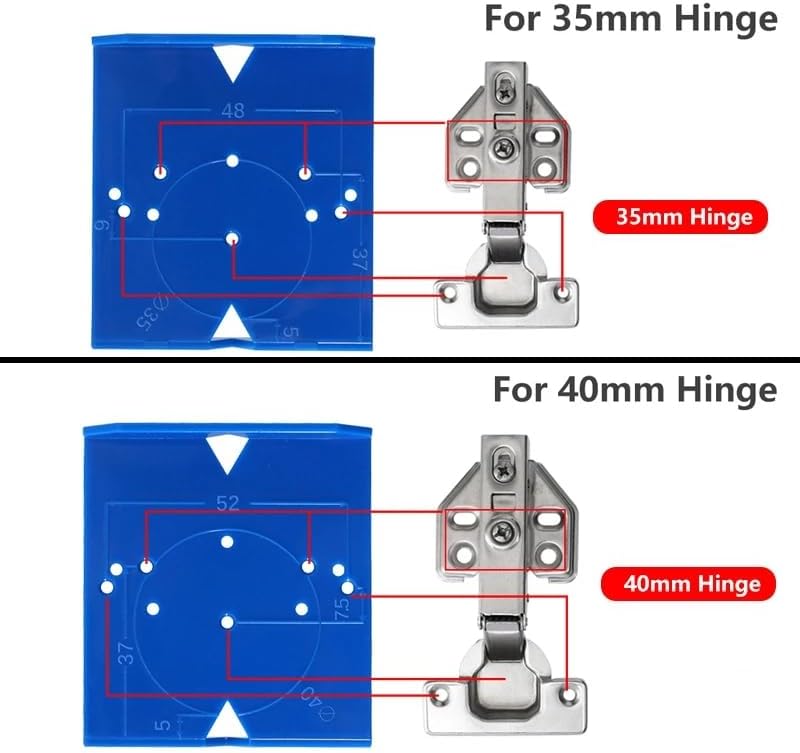

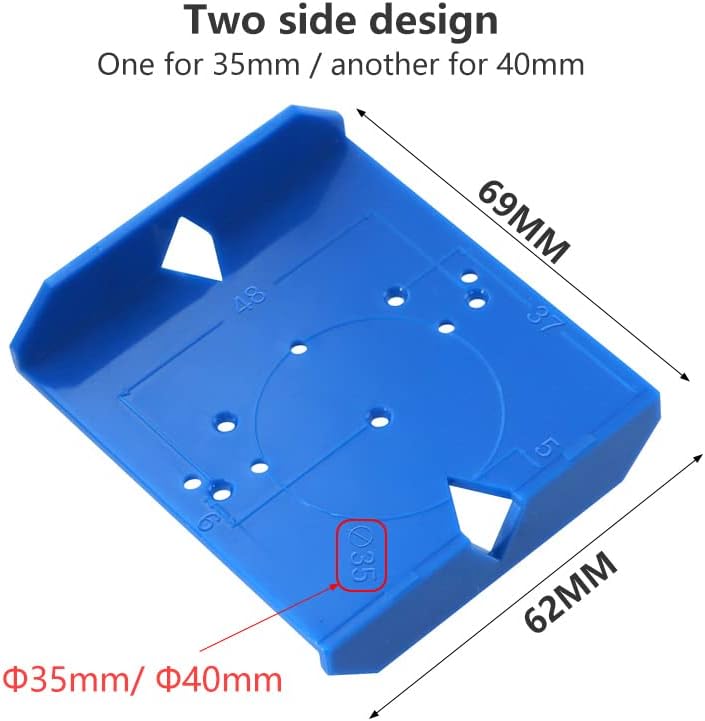

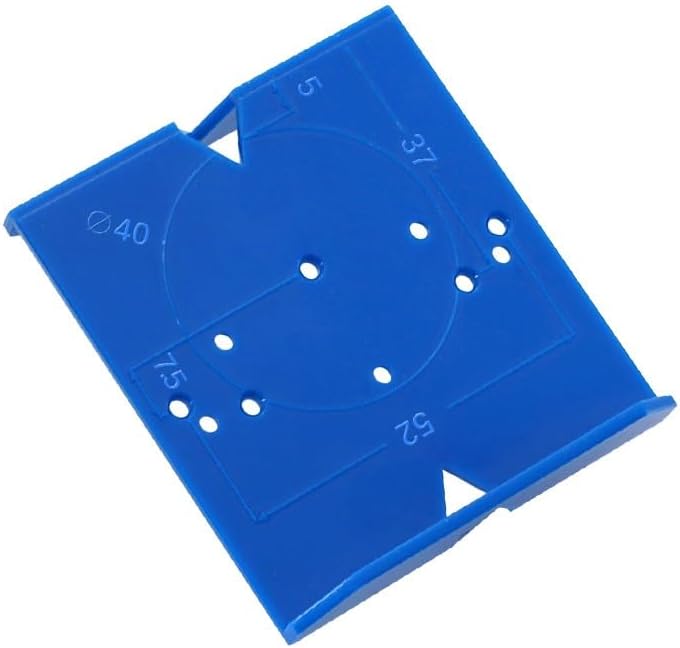

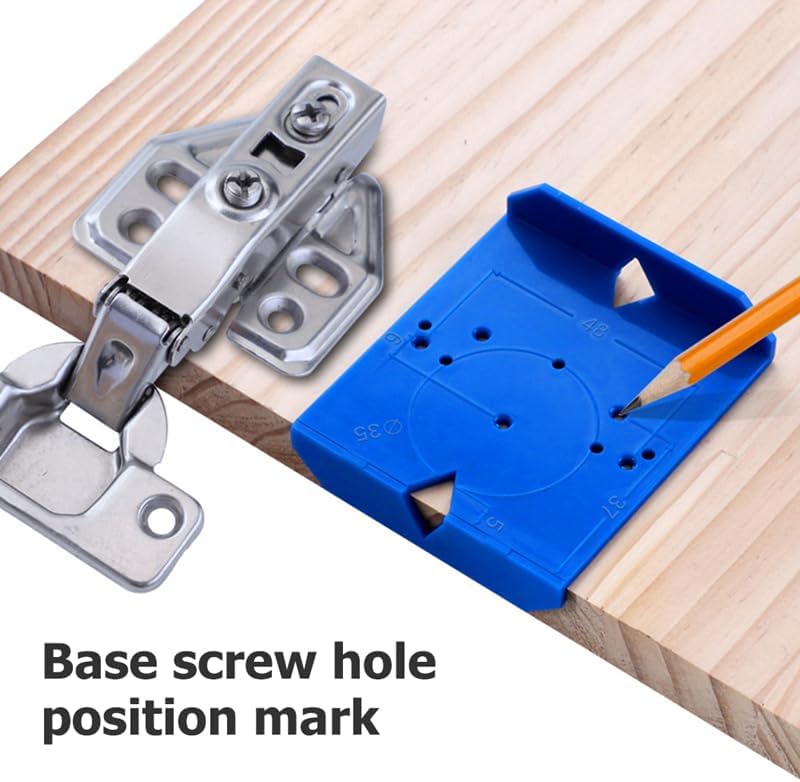

Descriptions:1. The hinge opening positioning ruler, ABS plastic material, light and portable, easy to operate.2. The 35mm/40mm cemented carbide drill bit is sharp and durable, with high drilling efficiency.3. Applications: Suitable for positioning and installation of hinges of furniture doors and cabinets.Specifications:Name: Hinge Hole Drilling Guide LocatorDrilling Guide Locator Material: ABSDrilling Guide Locator Colour: BlueApply to Diameter: 35/40mmDrill Bit Material: Cemented CarbideDrill Bit Colour: The colors are randomHow to use: (You can watch the operation video)1. Determine the position of the hinge cup and draw the center connecting line of the two wooden boards.2. According to the specification mark on the hinge positioning ruler, make the hole position mark of the base screw, and then drill the hinge cup hole.3. Mark the hole positions of the base screws on another board, and easily drill holes according to the hole positions.4. Install the hinge.Package includes: As shown in the figure (optional)01: (A)1 * Hole Locator02: (B)1 * Hole Locator1 * 35mm Hole Opener1 * 2mm Drill Bit03: (C)1 * Hole Locator1 * 40mm Hole Opener1 * 2mm Drill Bit04: (D)1 * Hole Locator1 * 35mm Adjustable Limit Hole Opener (random color)05: (E)1 * Hole Locator1 * 40mm Adjustable Limit Hole Opener (random color)Note:1.Please allow 1-3 cm differs due to manual measurement.2.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.Item specifics:Model number: Hinge Hole Jig supplies: PlumbingOrigin: Mainland ChinaCertification: CEType: Furniture Hinge
- Color: F
- Suitable for positioning and installation of hinges of furniture doors and cabinets.
- 1. The hinge opening positioning ruler, ABS plastic material, light and portable, easy to operate.
- 2. The 35mm/40mm cemented carbide drill bit is sharp and durable, with high drilling efficiency.
- 3.
| Color | F |
|---|---|
| Brand Name | Generic |
| Unit Count | 1.0 Count |
| Manufacturer | Generic |
| Manufacturer Part Number | HDS-1A3A6F7C8E734B65BDD0F9F697AC7CFF |
