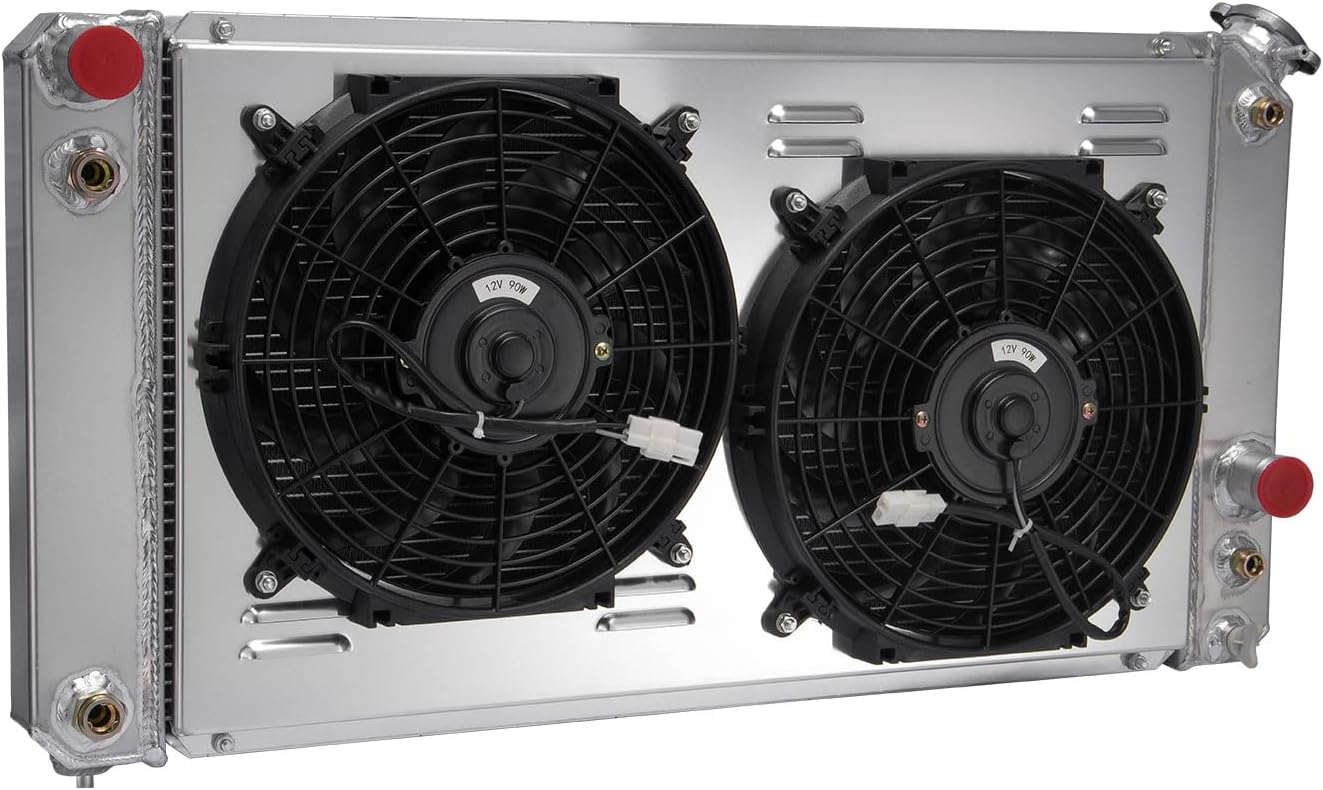

3 Row Radiator Shroud Fan For Chevy Express 1500/2500 Blazer S10 Truck Pickup GMC Jimmy Envoy GMC Sonoma GMC Jimmy GMC Sonoma Isuzu 1986-2005

Radiator Configuration: High Performance Racing Spec.3-Row of tubes Core Racing DesignCore Dimensions: 14-3/4" H x 27"WOverall Dimensions: 17 1/2" H x 32 1/2" WUpper Inlet: 1-3/8" located on the Driver sideLower Outlet: 1-1/2" located on the Passenger sideTrans Cooler Included: 3/8-18NPT(Z)Transmisson oil Cooler: On Passenger SideEngine Oil cooler：M20*1.5(Z) On Driver SidePlease Check the Size Before You Buy!Application:This Radiator Fits:For Chevy Blazer S10 Truck Pickup 4.3L V6 Engine 86-05For GMC Jimmy Envoy GMC Sonoma 4.3L V6 Engine 96-04 For GMC Savana 2500/1500 4.3L V6 Engine 96-05For Chevy Express 1500/2500 4.3L V6 Engine 2001-2005For Isuzu Hombre 96-00/96-01 Oldsmobile Bravada 4.3L V6Fan Specification:Diameter : 12'' (Blade to Blade)Voltage: DC 12 VoltsWattage: 80WFan Thickness: 2.5"Number of Blades: 10 S-Type bladesMaximum Fan CFM（Cubic Feet per Minute）: 2150cfmMaximum Fan RPM（Revolution(s) Per Minute）: 2000±10%S-Type Blade pull push design, to make air flow more efficient and bring more cooling EffectPowerful 80 watt motor will keep your engine cool.Package Include:1 X 3-Row Aluminum Radiator+Radiator Cap1 X Aluminum Shroud2 X 12''Fans (Includes mounting kits)

• 【Product specification】Core Dimensions: 14-3/4" H x 27"W,Overall Dimensions: 17 1/2" H x 32 1/2" W,Upper Inlet: 1-3/8" located on the Driver side,Lower Outlet: 1-1/2" located on the Passenger side.
• 【Excellent design】This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently.
• 【High performance】This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
• 【Easy To Install】: Light weight direct bolt-on replacement, stronger & higher capacity for coolant
• 【Vehicle Compatibility】Radiator Shroud Fan for Chevy Express 1500/2500 Blazer S10 Truck Pickup GMC Jimmy Envoy GMC Sonoma GMC Jimmy GMC Sonoma Isuzu 1986-2005
